Legrand MWS6-DD push-button panel White

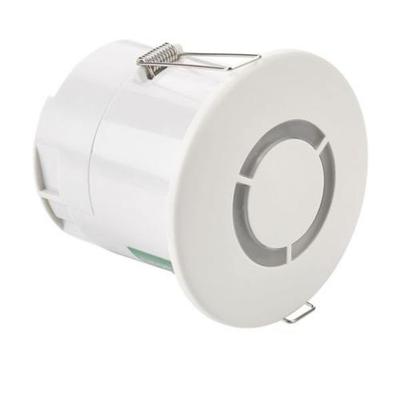

The MWS6 is a mid-range microwave presence/absence detector for the automatic control of lighting, heating and ventilation.

This detector has a low profile design which allows flush mounting into a ceiling tile, or surface mounting using a detector back box. Its reduced head size makes it unobtrusive to occupants. The MWS6 detects movement using a highly sensitive microwave detector. The simple plug in connections reduce installation time. The optional infrared remote handset allows the user to override the set up.

Functionality is fully programmable using either the UHS5 or UNLCDHS handsets.

Key features:

Low profile design

Self contained unit

Pluggable

IP40 rated

Available options:

LV - Low voltage

VFC - Voltage free contact

2CH - 2 channel

2CH-NC - 2 channel normally closed for fail safe applications

MWS6 - Key features of DALI/DSI Digital Dimming detectors include:

Switching/dimming with lux level lensing

Programmable via our programming handset

Absence detection functionality

User handset available to control on/off and lux levels

Step-down illuminance

Maintained illuminance (daylight linking or daylight harvesting)

Suitable for all lighting types

Two channel flexibility

Scene setting and recall

Lamp burn-in

User handset available to control on/off, lux levels and preset scenes
