Legrand EBMPIR-AD-L1 push-button panel Multicolour

Product Small and unobtrusive design

Supplied pre-wired with an RJ11 plug for connection to the relevant power supply

For mounting at heights up to 2.8m

A selection of fixing clips are available to allow the unit to be mounted in or to the side of a luminaire

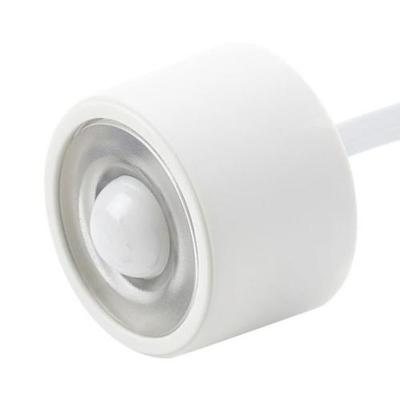

The EBMPIR series of miniature PIR (passive infrared) presence detectors provide automatic control of lighting loads with optional manual control. This range of detector is ideally suited for applications that require an unobtrusive solution or where space is at a premium.

Three models are available: premium, direct dim, and analogue dim all of which will switch incandescent, fluorescent and compact fluorescent lighting. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1-10V dimming ballasts. The unit detects movement using a PIR sensor and turns the load on. When an area is no longer occupied the load will switch off after an adjustable time out period.

Two power supplies are available:

Standard power supply. This power supply has a 6A relay. It also has connections for an external switch that can be used to turn on the load when absence detection mode has been set or raised / lowered with dimming variants.

Slim-line power supply: Where space is at a premium the slim-line power supply is compact and suitable for luminaire mounting where a 2A relay is sufficient. This power supply does not have connections for external switches.

A selection of fixing clips to allow the unit to be mounted in, or to the side of a luminaire are available.

Functionality is fully programmable using either the UHS5 or UNLCDHS handsets.

Available versions:

PRM - Switching

DD - DALI/DSI digital dimming

AD - Analogue dimming

LV - Low voltage

EBMPIR - Key features of 1–10V Analogue Dimming detectors include:

Switching/dimming with lux level lensing

Switching with lux level sensing

Programmable via our programming handset

Absence detection functionality

User handset available to control on/off and lux levels

Step-down illuminance

Maintained illuminance (daylight linking or daylight harvesting)

Suitable for all lighting types

Two channel flexibility

Scene setting and recall

Lamp burn-in

User handset available to control on/off, lux levels and preset scenes
