Casambi wireless enabled compact PIR detectors provide automatic control for lighting and ventilation loads. They work together in flexible groups with Casambi enabled lighting and other smart building devices.

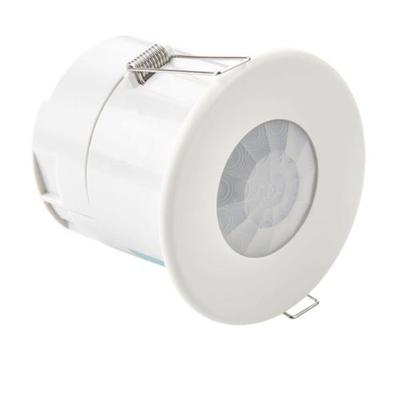

The PIR sensor can be mounted either flush into a ceiling tile or using a surface mounting box. Its low profile design means the unit can be mounted in a narrow ceiling void. No external control boxes are required as the unit is self-contained. Simple plug-in connections reduce installation time.

Casambi Technology Explained:

Casambi technology provides a wireless mesh network where the intelligence of the system is replicated in every node, creating a system with no single point of failure. The distributed and symmetric architecture means any unit can go offline and catch up from others when they are back online.

This lighting control solution is powered through the Casambi App which works on iOS and Android devices. The user interface is so simple that it can be used by anyone, regardless of technical proficiency. The Casambi App can be downloaded to your Apple iOS device from Apple's App Store or to your Android device from the Google Play Store.

Detector Features:

- Provides movement and daylight readings to the Casambi network

- Provides also output connections to convert or retrofit any lighting fixtures to become part of the Casambi smart lighting system

- DALI Dimming Output (Up to 10 Lighting Drivers)

- Built-in both switched relay and DALI dimming outputs

- 10A Relay Output

- Light Level Sensing

- Ideal for office and any general standard ceiling height applications

Wireless Features:

- Control a large number of fixtures from any point

- Simple to use UI

- Wide range of functionality – Grouping Luminaires, different lighting situations for different occasions, colour temperature, daylight sensor, occupancy sensor and much more
