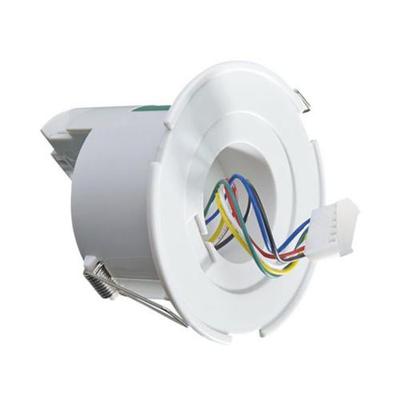

Legrand EBDHS-PSUR-PRM electrical relay Multicolour

The EBDHS range is an increased performance PIR presence detector developed for high bay lighting control in areas with demanding spaces and increased mounting heights, so is ideal for warehouse lighting control.

It is responsive to the constant shift of an organisation's lighting needs by being programmable and adjustable to produce an exceptionally accurate detection beam.

Three models are available: premium (PRM), direct dim (DD), and analogue dim (AD) all of which will switch a wide range of luminaires. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1-10V dimming ballasts.

Key product features

Groundbreaking detection range up to 40m at a 15m mounting height

Maximum mounting height up to 20m dependent on operating parameters

Unique lens technology - high sensitivity within the detection rangeIdeal for high bay applications, including warehouse lighting control

Supplied with adjustable masking shields to tailor detection zones

Verify feature reduces false triggering by ensuring detection from more than one of the internal sensors

Functionality is fully programmable using either the UHS5 or UNLCDHS handsets

UK and international patents

Available versions

PRM - Switching

DD - DALI/DSI dimming

AD - Analogue dimming

LV - Low voltage

OC - Open collector

An10 - Wireless

LT30 - Low temperature

DNET1 - DALI network

SR - Sensor Ready

EBDHS - Key features of PRM Switching detectors include:

Switching with lux level sensing

Programmable via our programming handset

Absence detection functionality

User handset available to control on/off and lux levels
