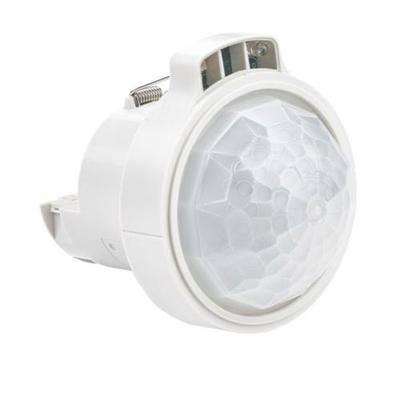

The EBDHS range of increased performance PIR presence detectors is developed for high bay lighting control in areas with demanding spaces and increased mounting heights. They are responsive to the constant shift of an organisation's lighting needs by being programmable and adjustable to produce an exceptionally accurate detection beam.

Casambi Technology Explained

Casambi technology provides a wireless mesh network where the intelligence of the system is replicated in every node, creating a system with no single point of failure.

The distributed and symmetric architecture means any unit can go offline and catch up from others when they are back online.

This lighting control solution is powered through the Casambi App which works on iOS and Android devices. The user interface is so simple that it can be used by anyone, regardless of technical proficiency. The Casambi App can be downloaded to your Apple iOS device from Apple's App Store or to your Android device from the Google Play Store.

Detector Features:

Ground-breaking detection range up to 40m at a 15m mounting height

Maximum mounting height up to 20m dependent on operating parameters

Multi-pyro design offers greater sensitivity without false triggering

Unique lens technology - high sensitivity within the detection range

Ideal for high bay applications, including warehouse lighting control

IP40 rated

Supplied with adjustable masking shields to tailor detection zones

UK and international patents applied for

Manufactured in the UK

Wireless Mesh Features:

Control a large number of fixtures from any point

Simple to use user interface

Wide range of functionality - Grouping luminaires, different lighting for different occasions, colour temperature, daylight sensor, occupancy sensor and much more
