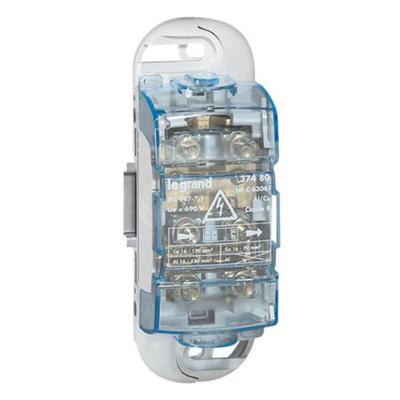

Legrand 037480 electrical junction box

Adapt the cross-section of the incoming or outgoing cable in order to connect a device
IP 2X box, self-extinguishing transparent cover
Universal fixing on rail or on plate
Reversible sealable cover with area for label
Operational voltage: Ue = 690 V~ according to EN 60947-1/IEC 60664-1
Aluminium connection, conform to standard NFC 63-061 class B
Copper connection, conform to standard EN 60947-7-1
Supplied with copper coupling strip
Aluminium/copper 120 mm² distribution box 300 A max.
Incoming:
16 to 120 mm² Aluminium or 16 to 120 mm² copper
16 to 120 mm² Aluminium or 16 to 120 mm² copper
Outgoing:
16 to 70 mm² copper
16 to 70 mm² copper
