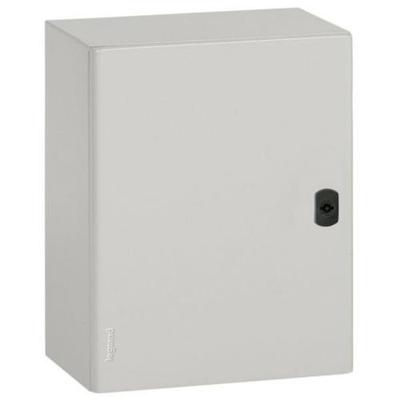

Legrand 036930 electrical enclosure IP66
Product code036930GTIN3414970696588
- Product colour: Grey
- International Protection (IP) code: IP66
- Width: 500 mm
- Depth: 250 mm
Grey
Product colour
IP66
International Protection (IP) code
500 mm
Width
250 mm
Depth
IP 66 according to standards IEC EN 60529 for 1-door enclosures - IP 55 according to standards IEC EN 60529 for 2-door enclosures
IK 10 according to standards IEC EN 62262
LCIE 17 07 90 10A
Type 4x, 1 door, Type 12, 2 doors - cULus, Bureau Veritas
EMC attenuation 20 dB (for an EMC attenuation from 40 to 50 dB at 1 GHz, please consult us)
Excellent resistance to corrosion and chemical agents
80 µm thick textured polyester coating. Anti-corrosion treatment for hinges and pins
Reversible door - Fitted with lever
Double bar lock - Self-centering positioning system for the equipment
Compatible with all Atlantic accessories
Low cable entries RAL 7035 - Optional depth adjustment for enclosures 400 mm depth, with side rails Cat. No. 0367 45
