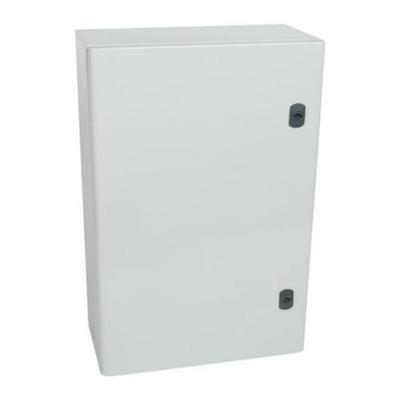

Legrand 036919 electrical enclosure IP66
Legrand · Electrical Enclosures

Legrand 036919 electrical enclosure IP66

Product code036919GTIN3414970696502
  • Product colour: Grey
  • International Protection (IP) code: IP66
  • Width: 400 mm
  • Depth: 200 mm
Grey
Product colour
IP66
International Protection (IP) code
400 mm
Width
200 mm
Depth

IP 66 according to standards IEC EN 60529 for 1-door enclosures - IP 55 according to standards IEC EN 60529 for 2-door enclosures

IK 10 according to standards IEC EN 62262

LCIE 17 07 90 10A

Type 4x, 1 door, Type 12, 2 doors - cULus, Bureau Veritas

EMC attenuation 20 dB (for an EMC attenuation from 40 to 50 dB at 1 GHz, please consult us)

Excellent resistance to corrosion and chemical agents

80 µm thick textured polyester coating. Anti-corrosion treatment for hinges and pins

Reversible door - Fitted with lever

Double bar lock - Self-centering positioning system for the equipment

Compatible with all Atlantic accessories

Low cable entries RAL 7035 - Optional depth adjustment for enclosures 400 mm depth, with side rails Cat. No. 0367 45
