Legrand · Electrical Enclosures

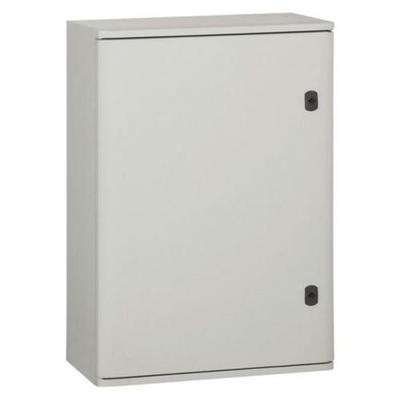

Legrand 036256 electrical enclosure IP66
Product code036256GTIN3245060362560
- Product colour: Grey
- International Protection (IP) code: IP66
- Width: 500 mm
- Depth: 250 mm
Grey
Product colour
IP66
International Protection (IP) code
500 mm
Width
250 mm
Depth
Grey RAL 7035
IP 66 according to IEC EN 60529
IK 10 according to IEC EN 62262 (EN 50102)
Class II insulation for final assembly according to IEC EN 60439-1
Glass fibre reinforced polyester (GRP) enclosures
Self extinguishing at 960°C according to IEC EN 60695-2-11
Designed for corrosive environments
Reversible door, 180o opening
2 x double bar locks
Captive stainless steel hinge pins
Mounting plate/equipment can be fixed directly to the rear of the enclosure
Accepts partial plate from 500 x 400 x 200mm and/or rails
Optional depth adjustment kit (Cat. No. 0362 42) available for enclosures 400mm high and above
For wall mounting, wall mounting brackets must be ordered separately
